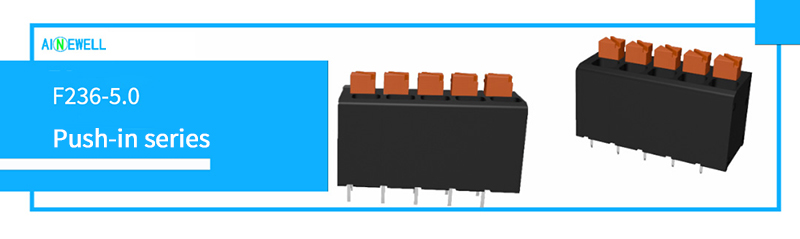

Efficient Connection, Reliable Connection | AINEWELL F236-5.0 Series Push-in PCB Terminal Blocks
2021-05-29

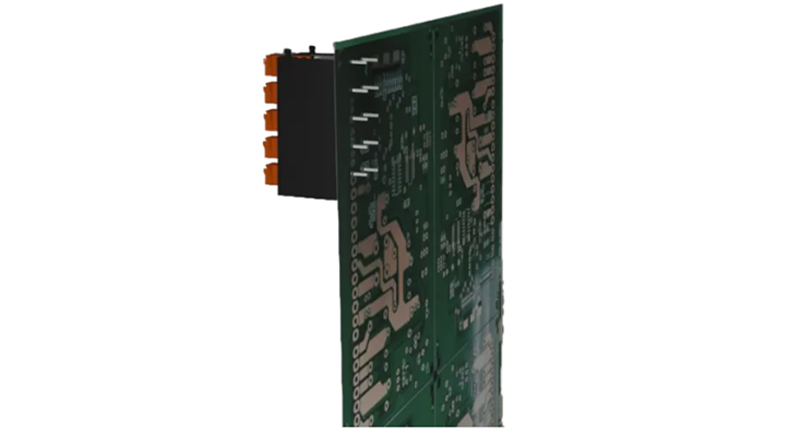

AINEWELL quickly responds to market demands and has developed front-entry push-in PCB terminals. The wiring direction and operation direction are on the same side, allowing the connector to be integrated into the front of the device and saving device space. At the same time, the product integrates test holes on the front, enabling customers to easily and safely perform electrical tests.

Products feature

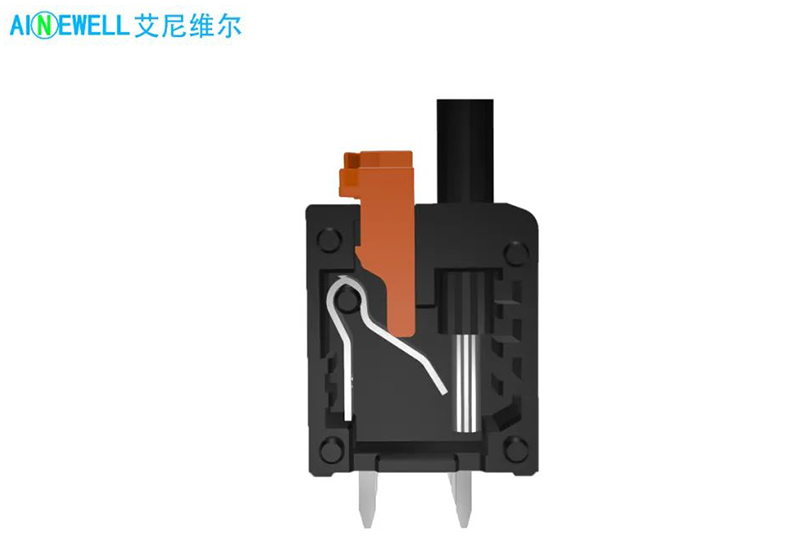

Push-in terminals enable efficient wiring, helping customers save on labor costs.

Dual-row solder pins securely connect to the PCB board, providing excellent anti-vibration performance.


Product Parameters

ModelF236-5.0
Pitch5.0mm
IEC Voltage320V
IEC Current17.5A
IEC Wire diameter0.2-1.5mm2
UL Voltage300V
UL Current10A
UL Wire diameter24-16AWG
